Cluster Head Assemblies
This page was last updated: June 30, 2010
4-HOLE BRASS PLATED STEEL
CANDLE BODY
Has 4 Top Holes
And 1 Bottom Hole
All Slip 1/8 IPS
Diameter 2-7/8"
D02-A648 Brass Plated (As shown)
D02-A648BLK Painted Black Satin or Gloss
D02-A648BRZ Painted Bronze Light Medium or Dark
D02-A648WHT Painted White Satin or Gloss

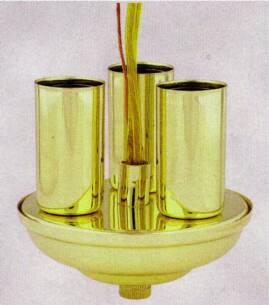

BRASS PLATED STEEL CANDELABRA BASE
3-LIGHT WIRED CLUSTER
Top Mount Coupling 1/8 IPS
Diameter 3-3/8"
Polished Brass Plated Candle Cups
72" SPT-1 and Ground
Top Mount Coupling 1/8 IPS
D02-A652 Brass Plated (As shown)
D02-A652BLK Painted Black Satin or Gloss
D02-A652BRZ Painted Bronze Light Medium or Dark
D02-A652WHT Painted White Satin or Gloss
Bottom Mount Coupling 1/8 IPS (Wires out Bottom)
D02-A652REV Brass Plated
D02-A652REVBLK Painted Black Satin or Gloss
D02-A652REVBRZ Painted Bronze Light Medium or Dark
D02-A652REVWHT Painted White Satin or Gloss

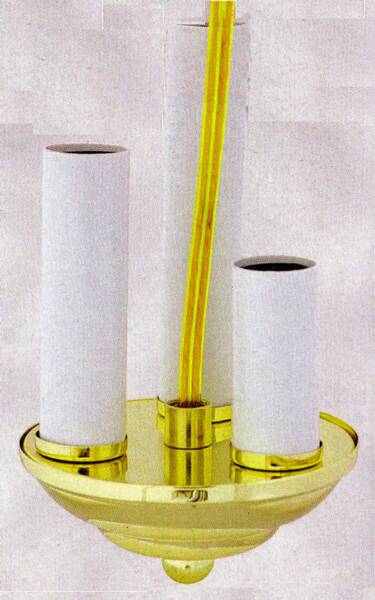

BRASS PLATED STEEL CANDELABRA BASE
3-LIGHT WIRED CLUSTER
Diameter 3-3/8"
Plain White Candle covers
HEIGHT 2", 3", & 4"
72" SPT-1 and Ground
Top Mount Coupling 1/8 IPS
D02-A653 Brass Plated (As shown)
D02-A653BLK Painted Black Satin or Gloss
D02-A653BRZ Painted Bronze light medium or Dark
D02-A653WHT Painted White Satin or Gloss
Bottom Mount Coupling 1/8 IPS (Wires out Bottom)
D02-A653REV Brass Plated
D02-A653REVBLK Painted Black Satin or Gloss
D02-A653REVBRZ Painted Bronze Light Medium or Dark
D02-A653REVWHT Painted White Satin or Gloss
Other sizes can be quoted upon request
e-mail request to cs@hrelampparts.com
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
Best if viewed with 1024 resolution!!!!
H028
Page

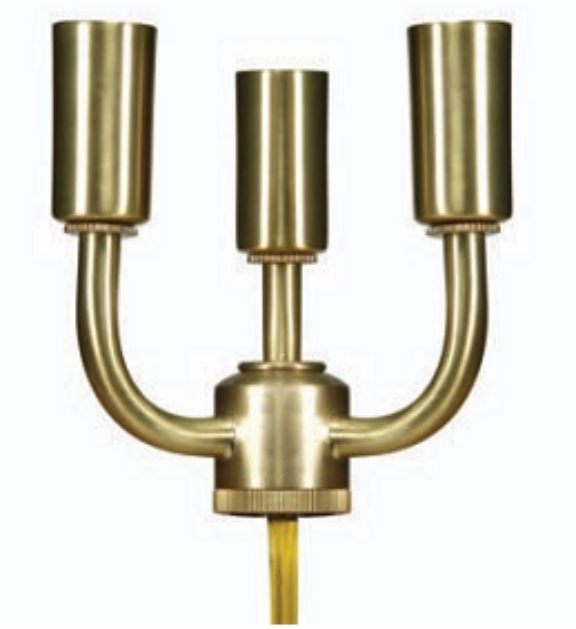

3 Light Candelabra Cluster Solid Brass
1/8IP Female Top and Bottom
With 8 Ft. SPT-2 Gold Wire
S05- 80-1797 Unfinished
S05- 80-1797AL Antiqued and Lacq
S05- 80-1797BL Brushed and Lacq
S05- 80-1797PL Polished and Lacq
