Brass Cluster Bodies And Assemblies
This page was last updated: February 5, 2011
2-PIECE SMALL
CLUSTER BODY
Diameter 1-1/8" • Height 1-1/8"
Turned Brass
Side Holes Tapped 1/8 IPS
Top Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #Side Holes
---------------------Lacquered--------------------------
D02-A600AL D02-A600BL D02-A600PL D02-A600 0
D02-A601AL D02-A601BL D02-A601PL D02-A601 2
D02-A602AL D02-A602BL D02-A602PL D02-A602 3
D02-A603AL D02-A603BL D02-A603PL D02-A603 4
Top Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #Side Holes
---------------------Lacquered--------------------------
D02-A604AL D02-A604BL D02-A604PL D02-A604 2

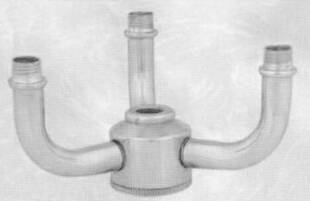

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Arms Thread 1/8 IP Male Lenght 1/4"
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601AAL D02-A601ABL D02-A601APL D02-A601A 2
D02-A658AL D02-A658BL D02-A658 D02-A602A 3
D02-A603AAL D02-A603ABL D02-A603APL D02-A603A 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604AAL D02-A604ABL D02-A604APL D02-A604A
2
2 Arms pointing to removeable cap
Positioned For Lamp or Sconce Use
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601BAL D02-A601BBL D02-A601BPL D02-A601B 2
D02-A602BAL D02-A602BBL D02-A602BPL D02-A602B 3
D02-A603BAL D02-A603BBL D02-A603BPL D02-A603B 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604BAL D02-A604BBL D02-A604BPL D02-A604B 2
2 Page
H108

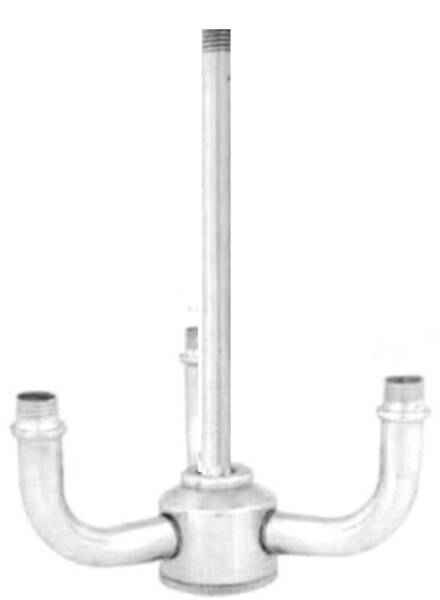

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Lenght 1/4"
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
--------------------------Lacquered-------------------------------
D02-A601A1AL D02-A601A1BL D02-A601A1PL D02-A601A1 2
D02-A602A1AL D02-A602A1BL D02-A602A1PL D02-A602A1 3
D02-A603A1AL D02-A603A1BL D02-A603A1PL D02-A603A1 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604A1AL D02-A604A1BL D02-A604A1PL D02-A604A1 2
Arms pointing to removeable cap
Positioned For Lamp or Sconce Use
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601B1AL D02-A601B1BL D02-A601B1PL D02-A601B1 2
D02-A602B1AL D02-A602B1BL D02-A602B1PL D02-A602B1 3
D02-A603B1AL D02-A603B1BL D02-A603B1PL D02-A603B1 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604B1AL D02-A604B1BL D02-A604B1PL D02-A604B1 2

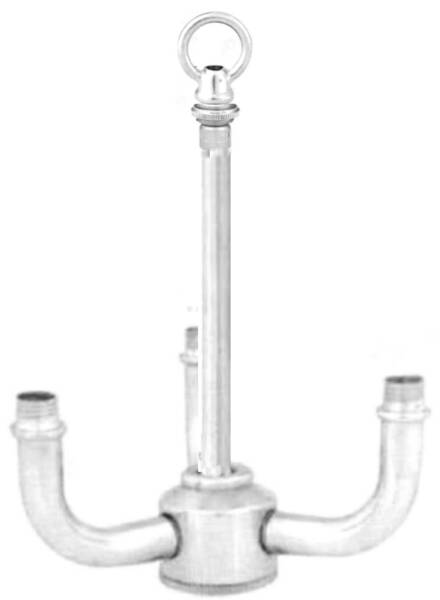

2 SOLID BRASS BODY WITH ARMS
Cluster Body Arms Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Hang Straight and 1" loop
Arms Thread 1/8 IP Male Lenght 1/4"
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601A2AL D02-A601A2BL D02-A601A2PL D02-A601A2 2
D02-A602A2AL D02-A602A2BL D02-A602A2PL D02-A602A2 3
D02-A603A2AL D02-A603A2BL D02-A603A2PL D02-A603A2 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604A2AL D02-A604A2BL D02-A604A2PL D02-A604A2 2

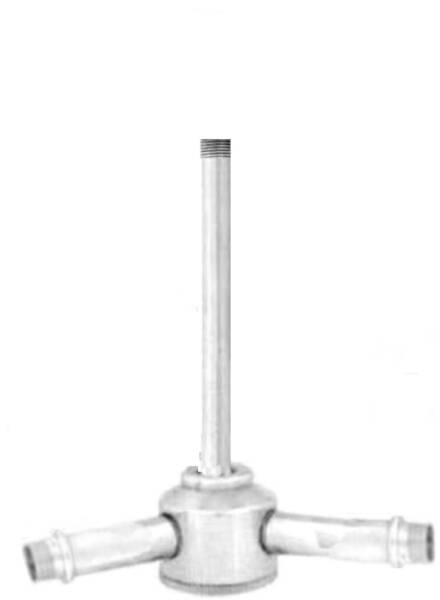

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Striaght out use for Hanging Fixture or lamp
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Arms Thread 1/8 IP Male Lenght 1/4"
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601C1AL D02-A601C1BL D02-A601C1PL D02-A601C1 2
D02-A602C1AL D02-A602C1BL D02-A602C1PL D02-A602C1 3
D02-A603C1AL D02-A603C1BL D02-A603C1PL D02-A603C1 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604C1AL D02-A604C1BL D02-A604C1PL D02-A604C1 2

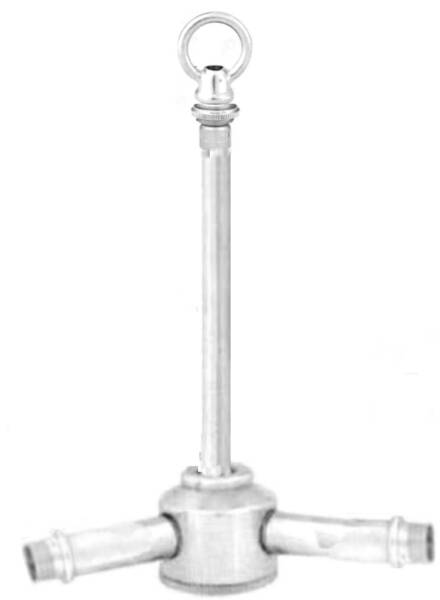

SOLID BRASS BODY WITH ARMS
Cluster Body Arms Striaght out Positioned for Hanging Fixture
Diameter/Spread 3-1/2"
Stem Brass Pipe 12 3/4" End 1/4" Threaded 1/8 IP or 1/4 IP
Hang Straight and 1" loop
Arms Thread 1/8 IP Male Lenght 1/4"
Cap Center Hole & Bottom Tapped 1/8 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A601C2AL D02-A601C2BL D02-A601C2PL D02-A601C2 2
D02-A602C2AL D02-A602C2BL D02-A602C2PL D02-A602C2 3
D02-A603C2AL D02-A603C2BL D02-A603C2PL D02-A603C2 4
Cap Center Hole Tapped 1/8 IPS Bottom Tapped 1/4 IPS
Antiqued Brushed Polished Unfinished #of Arms
---------------------Lacquered--------------------------
D02-A604C2AL D02-A604C2BL D02-A604C2PL D02-A604C2 2
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
Other combinations, and finishes may be available or produced e-mail cs@hrelampparts.com your specifications and we will obtain a quote for you!!!
