Halogen Safety Glass and Reflector
This page was last updated: December 28, 2010
Page
H198

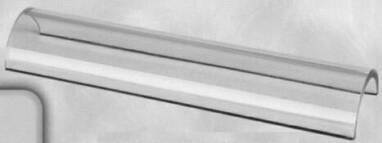

GLASS SAFETY LENS SHIELD
For 117mm Halogen Lamp
Length 123mm (4.85")
Clips on Socket or Reflector
Clear

D02-E3025RT   Rusted & lacq
D02-E3025PT   Painted and cleared
D02-E3025Unfinished
SCREW-ON CLIP
For D02-E3025

D02-E3027RT   Rusted & lacq
D02-E3027PT   Painted and cleared
D02-E3027Unfinished

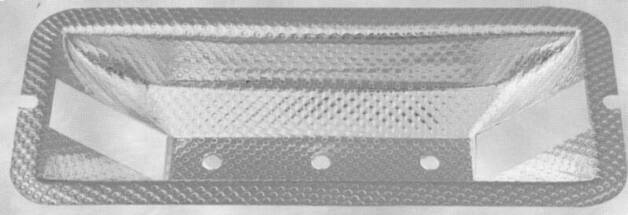

ALUMINUM REFLECTOR
For 117mm Halogen Lamp
Length 6-7/8" • Width 2-7/8" • Depth 1"
Three Bottom Slip Holes 3/16"

D02-E3020RT   Rusted & lacq
D02-E3020PT   Painted and cleared
D02-E3020Unfinished

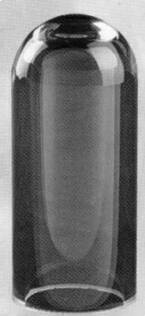

SAFETY GLASS
Diameter 30mm (1.18")
Height 65mm (2.56")

D02-E6400RT   Rusted & lacq
D02-E6400PT   Painted and cleared
D02-E6400Unfinished
Safety Glass For
Mini-Can Lamps
SNAP-ON CLIP
For D02-E6400

D02-E3026RT   Rusted & lacq
D02-E3026PT   Painted and cleared
D02-E3026Unfinished

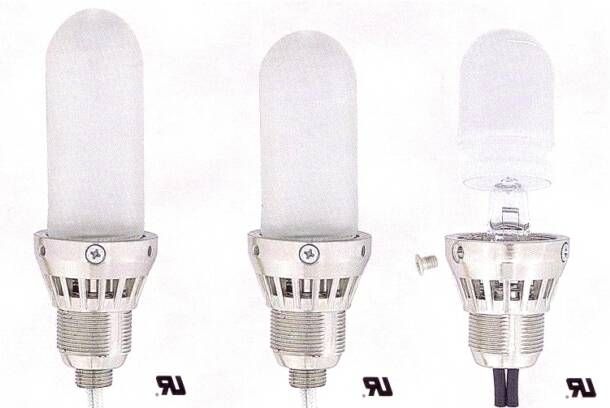

LAMPHOLDER UNIT WITH SAFETY GLASS
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
For D.C. Bayonet Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 25/32"

D02-E6400RT   Rusted & lacq
D02-E6400PT   Painted and cleared
D02-E6400UnfinishedDR-E6410
For G-8 Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 9/16"

D02-E6415RT   Rusted & lacq
D02-E6415PT   Painted and cleared
D02-E6415Unfinished
For G-4, G-5.3, GX-5.3 or G6.35 Base
6" SF-2 Leads thur
Bottom Tapped 1/8 IPS
Height 3 9/16"

D02-E6420RT   Rusted & lacq
D02-E6420PT   Painted and cleared
D02-E6420Unfinished
