Cluster Heads
This page was last updated: December 19, 2010

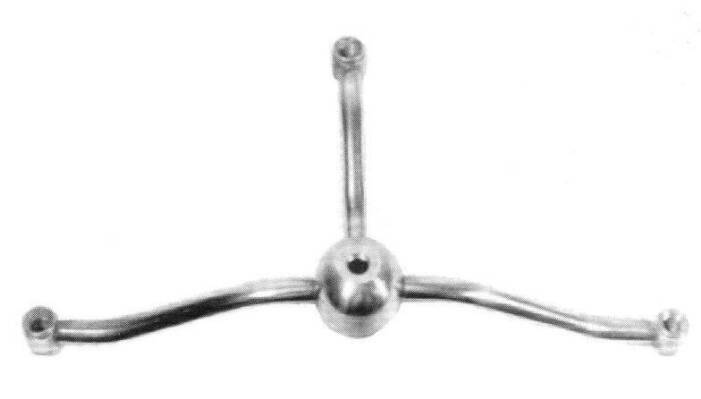

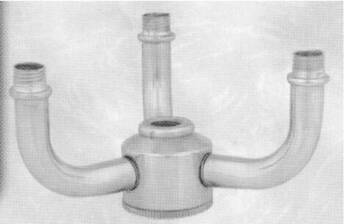

SOLID BRASS 3-ARM
CLUSTER BODY
1/8 IPS • Diameter 3-1/2"
Arms Threaded 1/4"

D02-A658AL        Antique and lacq
D02-A658BL        Brushed and lacq
D02-A658              Polished and lacq
D02-A658SL        Satin and lacq

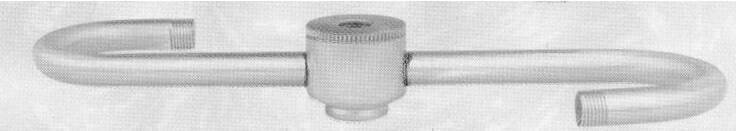

SOLID BRASS 2-LIGHT
"S" ARM BENT DOWN CLUSTER BODY
Arms Threaded 1/4"
SPREAD 5-1/2"
1/8 IPS Top • 1/8 1PS BOTTOM

D02-A667AL   Antiqued & Lacq
D02-A667BL   Brushed & Lacq
D02-A669 Polished & Lacq
D02-A668 Satin Brass & Lacq
D02-A667 Unfinished
SPREAD 5-1/2"
1/8 IPS Top • 1/4 IPS BOTTOM

D02-A667AL   Antiqued & Lacq
D02-A667BL   Brushed & Lacq
D02-A663 Polished & Lacq
D02-A664 Satin Brass & Lacq
D02-A662 Unfinished
SPREAD 7-1/2"
1/8 IPS Top - 1/4 IPS BOTTOM

D02-A659AL   Antiqued & Lacq
D02-A659BL   Brushed & Lacq
D02-A660 Polished & Lacq
D02-A661 Satin Brass & Lacq
D02-A659 Unfinished
Other sizes can be quoted upon request
e-mail request to cs@hrelampparts.com

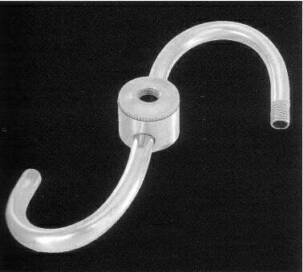

S-type, 2-Light Cluster Body with bent down cluster arms. Solid brass, 6 1/4" end to end, 1/8F X 1/8F, with 1/8 IP arms.

B02-10407BAL      Antique and lacqu
B02-10407BBL      Brushed and lacq
B02-10407BPL      Polished and lacq
B02-10407BPL      Satin and lacq
B02-10407B           Unfinished
2-Light w/Fount Aim
3/8" Tubing on 1 1/2" Body
Width 11 1/2" center to center
Fount 4 1/2" center to fount

No Switch Hole
H05-2680-AL        Antiqued and Lacq
H05-2680-BL        Brushed and Lacq
H05-2680-PL        Polished and Lacq
H05-2680-SL        Satin and lacq
H05-2680-UNF     Unfinished

With Switch Hole
H05-2681-AL        Antiqued and Lacq
H05-2681-BL        Brushed and Lacq
H05-2681-PL        Polished and Lacq
H05-2681-SL        Satin and lacq
H05-2681-UNF     Unfinished
1-Light w/Fount Arm
3/8" Tubing on 1 1/8" Body

Width 4 3/4" center to light
Fount 3 1/2" center to fount

No Switch Hole
H05-2685-AL        Antiqued and Lacq
H05-2685-BL        Brushed and Lacq
H05-2685-PL        Polished and Lacq
H05-2685-SL        Satin and lacq
H05-2685-UNF     Unfinished

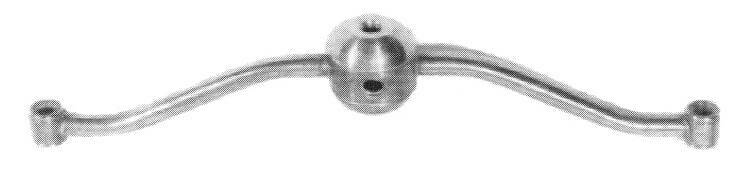

2-Light Arm 3/8" Tubing on 1 1/2" Colonial Body Width 11 1/2" center to center

No Switch Hole
H05-2682-AL        Antiqued and Lacq
H05-2682-BL        Brushed and Lacq
H05-2682-PL        Polished and Lacq
H05-2682-SL        Satin and lacq
H05-2682-UNF     Unfinished

With Switch Hole
H05-2683-AL        Antiqued and Lacq
H05-2683-BL        Brushed and Lacq
H05-2683-PL        Polished and Lacq
H05-2683-SL        Satin and lacq
H05-2683-UNF     Unfinished
Other sizes and/or cofiguration may be available be quoted upon request e-mail request to cs@hrelampparts.com
Minimum quanities may have to be ordered!!!!
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
