Zinc Plated Bracket/Cross Bars
OFFSET CROSS BAR
Length 3-15/16" Slips Over 3/8 IPS Pipe
Screw Holes 2-3/4" C. to C.* Tapped #8-32 Ground Screw Inserted

D02-B644

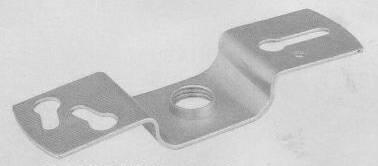

QUICK HANG BRACKET BAR
Makes Hanging Heavy Fixtures Much Easier
Length 4-1/4" Zinc Plated

.0845" Thickness with Ground Screw
D02-B6400   1/8 IPS Center Hole
D02-B6402   1/4 IPS Center Hole
D02-B6404   3/8 IPS Center Hole
This page was last updated: April 10, 2011

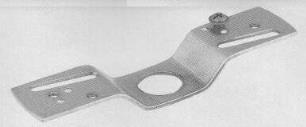

LONG OFFSET CROSS BAR
Length 4-1/2" Slips Over 3/8 IPS Pipe
Inside Screw Holes 2-3/4" C. to C.* Outside Screw Holes 3-1/2" C. to C.*  Tapped #8-32
Ground Screw Inserted

D02-B636

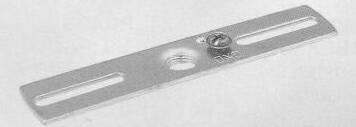

TAPPED BRACKET BARS
Length 3-7/8"
Ground Screw Inserted

Zinc Plated
D02-B6421/8 IPS Center Hole
D02-B6431/4 IPS Center Hole
D02-B630#8-32 Center Hole (no screw)

0.1150” Thickness, unfinished
D02-B64061/8 IPS Center Hole
D02-B64081/4 IPS Center Hole
D02-B64103/8 IPS Center Hole
*C. to C. is an abbreviation for center to center.
H070
Page
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
OFFSET CROSS BAR
LENGTH 3 15/16" Slips Over 3/8 IPS Pipe
Inside Screw Holes 2-3/16" C. to C.* Outside Screw Holes 3-9/16" C. to C.* Tapped #8-32
Ground Screw Inserted

B02-22919

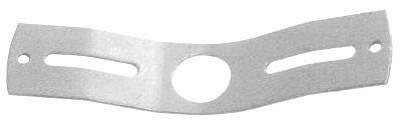

LONG OFFSET CROSS BAR
Slips Over 3/8 IPS Pipe
Screw Holes Tapped #8-32

LENGTH 4-1/2" Screw Holes 4 1/4" C. to C.*
B02-22910

LENGTH 5" Screw Holes 4 5/8" C. to C.*
B02-22889

LENGTH 6 1/4" Screw Holes 6" C. to C.*
M02-B106

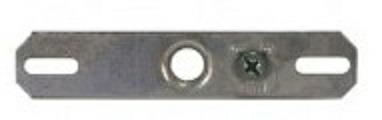

TAPPED BRACKET BARS
1" Wide 4 1/8" Length
Tapped # 8-32 Ground Screw Hole

D03-541101/4 IPS Center Hole

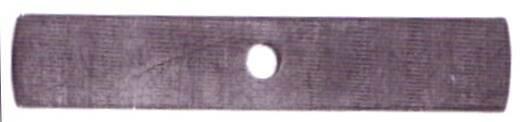

TAPPED PLAIN BAR
Length 5 7/8"
Unfinished

M02-B811/8 IPS Center Hole
BRASS PLAIN BAR
Slips 1/8IP, 3/4" Wide, 1/16" Thick, Unfinished

        Lenght
H02-3210UNF   2"
H02-3214UNF   2 1/2"
H02-3218UNF   3"
H02-3222UNF   3 1/2"
H02-3226UNF   4"
H02-3230UNF   4 1/2"
H02-3234UNF   5"
H02-3238UNF   5 1/2"
H02-3242UNF   6"

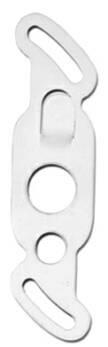

Crossbar French Hook
used to hang European sconces, fits 4" box

D03-54093

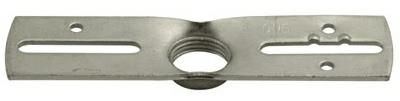

TAPPED BRACKET BARS
1" Wide 4 3/8" Length
Tapped # 8-32 Ground Screw Hole

D03-548633/8 IPS Center Hole
