Wire Connectors
FOR 1O5° SUPPLY WIRE
Hi HEAT PLASTIC
FOR 150° SUPPLY WIRE
WITH SPRING INSERT
This page was last updated: August 16, 2017

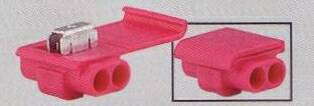

For Use With Solid
Or Stranded 16-22 GA.
Red
D02-2-1760
YELLOW
Rated up to 3-#18 Max
105Deg 600V
D02-2-1770
SMALL
Rated Up to 2-#16
300V
D02-2-1745

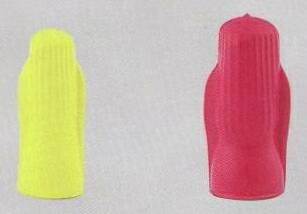

YELLOW Rated 1000V
D02-2-1777
All Wire Connectors on this page are U.L. Listed & CSA Certified.

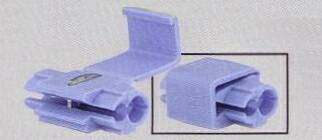

Buss Bar Type
Connector 14-18 GA.
Blue
D02-2-1765
MEDIUM
Rated Up to 5-#18
300V
D02-2-1748

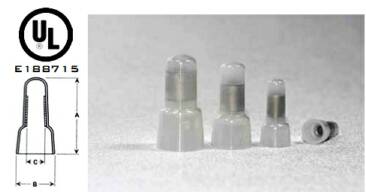

CRIMP ON CONNECTORS
FOR 1O5° SUPPLY WIRE
CRIMP-ON
Rated 105 Degree 300V
G04-GCE-1 Up to 2-#18
D02-2-1750 GCE-2 Up to 4-#18
D02-2-1755 GCE-5 Up to 6-#18
G04-GCE-8 Up to 8-#18
RED
Rated 1000V
D02-2-1778
SCOTCH-LOC CONNECTORS
FOR 105° SUPPLY WIRE
WITH SPRING INSERT

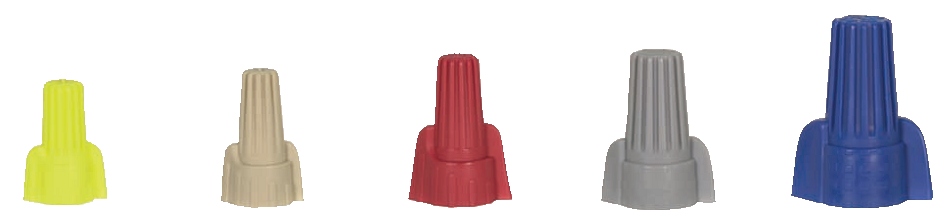

WING NUT WIRE CONNECTORS
FOR 105° SUPPLY WIRE
WITH SPRING INSERT
RED
Rated up to 5-#16 Max
105Deg 600V
D02-2-1775
Page
H069
Buss Bar Tap and Run Type
Run 12-10 GA. Tap 14-18 GA.
Yellow
G04-GQS-Y10V
Best if viewed with 1024 resolution!!!!
TAN
Rated up to 9-#18 Max
105Deg 600V
S05-9A2238
Grey
Rated up to 4-#12 Max
105Deg 600V
S05-9A2240
Blue
Rated up to 4-#10 Max
105Deg 600V
S05-9A2241
