Magnetic Flourescent Ballast
This page was last updated: June 16, 2010
                                                                               Mounting
Part #          Volt    HzAMP            Centers         HeightLengthwidth
D02-D2910       120V           60        0.35             2-13/16"         1-3/8"           3''              1-7/8"
D02-D2915       120V           60        0.65             6"                    1-3/8"           6-1/2"        1-7/8"
D02-D2990       120V           60        0.43             9"                    1-9/16"         9-1/2"        2-3/8"
D02-D2995       120V           60        0.80             9"                    1-9/16"         9-1/2"        2-3/8"
D02-D2997       120V           60        1.00             9"                    1-13/16"       9-1/2"        3-1/8"
D02-D3426       120V           60        0.25             2-3/4"             1-3/4"            3"              1-1/4"
D02-D2989       120V           60        0.65             5-15/16"         1-7/16"         6-1/4"        1-7/8"
MAGNETIC
FOR (1) FC8T9, 22W CIRCLINE LAMP
WITH CIRCLINE SOCKET
6" Leads • Class P • Outdoor

D02-D2910
MAGNETIC
15-20 WATT BALLAST
1F15T8,1F15T12
1F17T8,1F20T12
12" Leads

D02-D3426

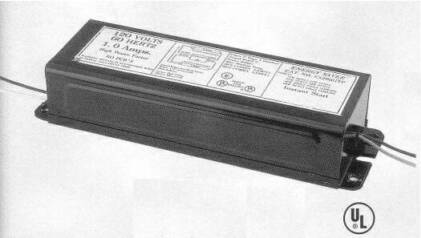

MAGNETIC BALLAST
For (2) F96T12/75W
High Power Factor

D02-D2997
MAGNETIC - RAPID START
NORMAL POWER FACTOR
FOR (1) FC12T9, 32W OR
(1) FC16T9, 40 W CIRCLINE LAMP
with Circline Socket
6" Leads • Class P

D02-D2915

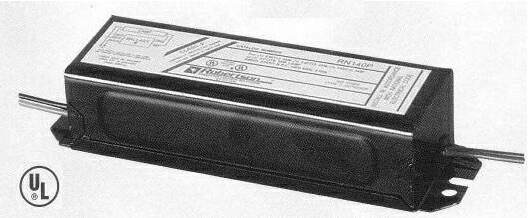

MAGNETIC BALLAST
For (1) F30T12/30W. (1)
F40T12/34W or (1) FC12T9132W
Normal Power Factor

D02-D2989

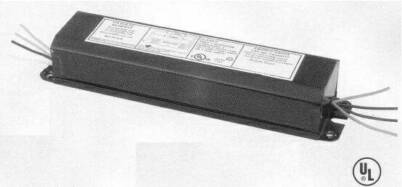

MAGNETIC BALLAST
For (2) F40T12/34W
High Power Factor

D02-D2995

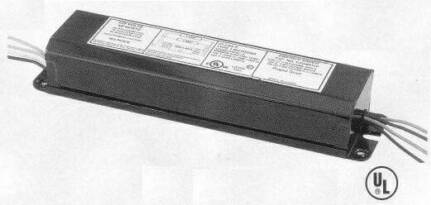

MAGNETIC BALLAST
For (1) F40T12/34W
High Power Factor

D02-D2990
Page
H055
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
MAGNETIC - RAPID START
NORMAL POWER FACTOR
Circline Lamp with Circline Socket

For FC8T9, 22W and FC12T9, 32W

M02-BAC3222

For FC12T9, 32W andFC16T9, 40 W

M02-BAC4032
