Magnetic Flourescent Combo Ballast
This page was last updated: August 16, 2017
Compare These Features To Your  Current Ballast/socket Specification:
-Pre-wired With 12" Leads
-Compact Footprint
-Low Profile
-Auto-Resetting Thermal Protector
-Enclosed Ballast Core
-White Finish

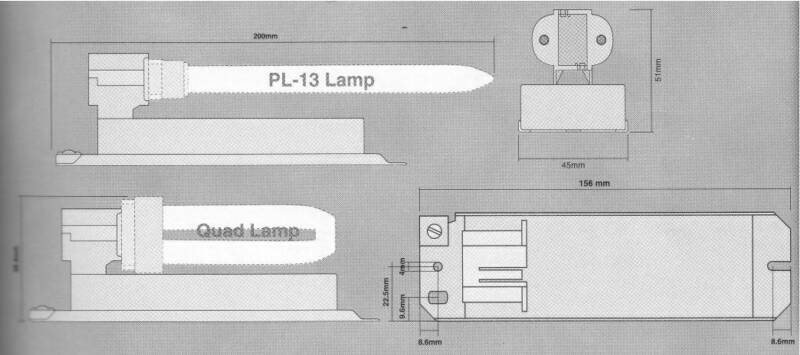

Length 6-1/8" • Width 1-5/8"
Mounting Holes: 5-5/8" C. To C.
Push-In Terminals

D02-4-34007/9 Watt (Height 1-5/8")
D02-4-340513 Watt • Class P (Height 2")
                                                Circuit            Ballast      Power        Ballast       Input              Sound              Minimum Start
Part#               Wattage         Voltage          Type          Factor       Factor        Current         Rating               Temperature          Width

D02-4-3415         13                 120V             Magnetic        .67           85.1.30                   A                           32 F
D02-4-3416         13                 120V             Magnetic      1.00    85.1.15    A   32 F

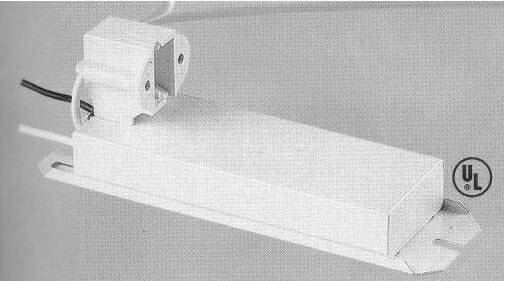

This PL-13 Ballast/Socket Combination Sub-Assembly Represents A Great Value To Production And Custom OEM Lighting Manufacturers. Using This Unit Your Labor Cost and Design Cost Savings Potential Are Tremendous, 2 Screw, 2 rivets, 2 Wire Connectors, 1 Ground Wire Screw. Just Add A Lamp And Your Installation Is Complete.
