Twin, Quad and Triple Tube PL Sockets
This page was last updated: June 15, 2010
PL 2-PIN FLUORESCENT LAMP HOLDERS
Horizontal Snap-Mount
Snaps In .25 - .40 Panel
Angles Socket 15°
Ouickwire

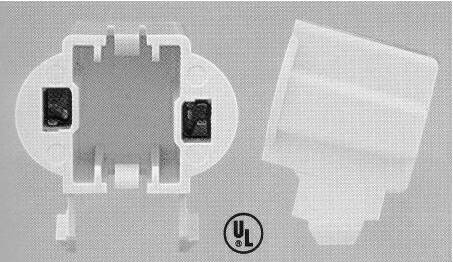

D02-D3969 5-7-9 Wart • G23, G23.2
D02-D3970 13 Watt Gx23. Gx23.2
15MM QUAD PL 2-PIN LAMP HOLDERS
Four Hole Screw Down Base
Quickwire

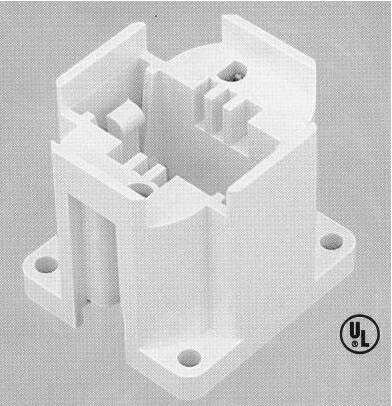

D02-D3971
22 Watt • Gx32d-2
22 Watt • Gx32d-2D02-D397228 Watt • Gx32d-3
28 Watt • Gx32d-31/8 IPS PIPE MOUNTING BRACKET
Must Be Used With 1/2" Hex Nut
Fits All 4 Hole Screw Down PL And
Ouad Sockets
Except D02-D3971 & D02-D3972

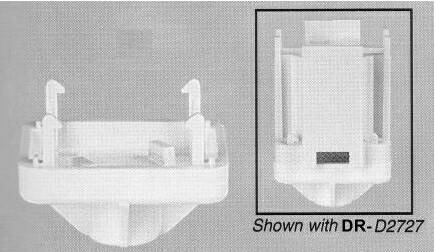

D02-D3977
Shown with D02-D2727
1/8 IPS PIPE MOUNTING BRACKET
Must Be Used With 1/2" Hex Nut
For DR-D3971 & DR-D3972
D02-D3973

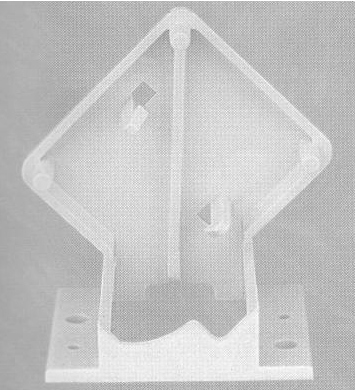

SCREW DOWN MOUNTING BRACKET
For DR-D3971 & DR-D3972
D02-D3975

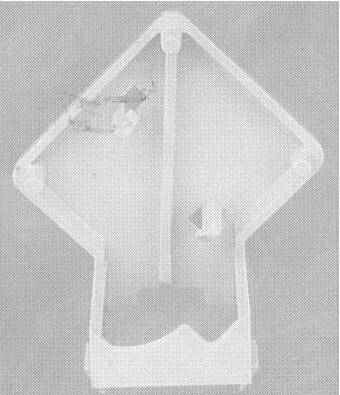

PANEL MOUNT BRACKET
For DR-D3971 & DR-D3972
D02-D3974
