FOR G24Q AND GX24G LAMP BASE 4-PIN

SUITABLE FOR DIMMING OR ELECTRONIC BALLASTS

                      MOUNTING     -   LAMP BASE   -    PHILLIPS       -     OSRAM-   GE

         SYLVANIA           LIGHTING

D02-4-2732     Bottom Snap-In     -    G24q-1  -   PL-C 10W, 13W     -     Dulux D 10W, 13W-    Double Biax 10W, 13W

GX24q-1    Triple Biax 13W

D02-4-2734    Bottom Snap-In      -    G24q-2  -   PL-C 18W      -    Dulux D 18W  -   Double Biax 18W

For 16GA Panel GX24q-2    PL-T 18W            DUPLEX T/E 18W        Triple Biax 18W

D02-4-2736    Bottom Snap-In      -    G24q-3  -   PL-C 26W      -    Dulux D/E 26W         -   Double Biax 26W

                  GX24q-3    PL-T 26W, 32W           Dulux T/E 26W, 32W            Triple Biax26W, 32W

D02-4-2733    Bottom Screw-Down      -    G24q-1  -   PL-C 10W, 13W     -     Dulux D/E 10W, 13W       -   Double Biax 10W, 13W

D02-4-2840    Horizontal Screw-Down     Triple Biax 13W

D02-4-2735    Bottom Screw-Down      -    G24q-2  -   PL-C 18W                -    Dulux D 18W  -   Double Biax 18W

D02-4-2842    Horizontal Screw-Down      GX24q-2    PL-T 18W                     Dulux T/E   Triple Biax 18W

D02-4-2737    Bottom Screw-Down      -    G24q-3  -   PL-C 26W      -    Dulux D/E 26W        -   Double Biax 26W

D02-4-2844    Horizontal Screw-Down      GX24q-3    PL-T 26W, 32W           Dulux T/E 26W, 32W            Triple Biax 26W, 32W

D02-4-3990    Bottom Screw-Down      -    GX24q-4         -   PL-T 42W       -    Dulux T/E 42W        -   Performance Biax 42W

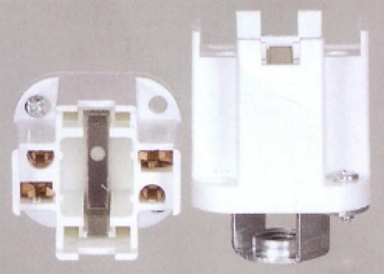

D02-4-2740    Bottom Hickey       -    G24q-1  -   PL-C 10W, 13W     -     Dulux D 10W, 13W-    Double Biax 10W, 13W

GX24q-1    Triple Biax 13W

PL SOCKETS AND QUAD SOCKETS

This page was last updated: August 16, 2017

         FOR G24D LAMP BASE 2-PIN

                        MOUNTING        -   LAMP BASE   -   PHILLIPS        -    OSRAM      -        GE

    SYLVANIA            LIGHTING

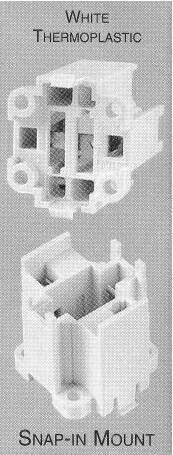

D02-4-2730  Bottom Snap-In   -    G24d-3 -      PL-C 26W    -    Dulux D 26W       -        Double Biax 26W

For 16GA Panel       Dulux T 26W

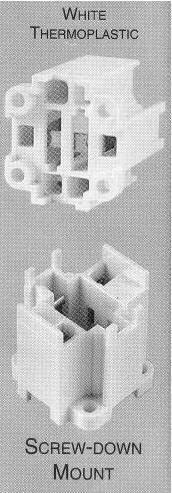

D02-4-2727  Bottom Screw-Down   -    G24d-1 -      PL-C   -    Dulux D      -        Double Biax

    10W & 13W        10W & 13W       10W & 13W

D02-4-2729  Bottom Screw-Down   -    G24d-2          -     PL-C 18W      -    Dulux D 18W       -        Double Biax 18W

D02-4-2731 Bottom Screw-Down   -    G24d-3-      PL-C 26W     -    Dulux D 26W       -        Double Biax 26W

    Dulux T 26W

All PL Sockets Are U.L. Listed and C.S.A. Certified.

Last Page      Next Page

Quick Connect Push-In Wiring For 18GA. Solid or Twisted And Tinned Leads, Stripped 5/16"

NOTE:

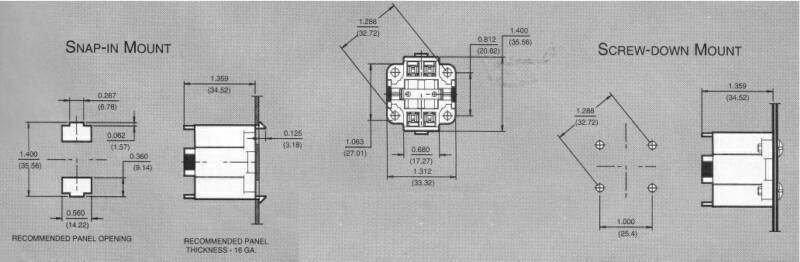

Dimension On This Page In Parentheses Are In Millimeters. All Others Are In Inches.
