Fluorescent Lamp Holders
This page was last updated: June 15, 2010

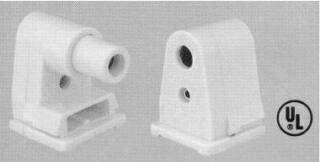

SLIDE-ON QUICKWIRE
SLIMLINE LAMP HOLDERS
Shallow Base Only
11/64" Deep Slide-On Grooves
Rated 660W-1000V
D02-D2682 Plunger End
D02-D2883 Stationary End

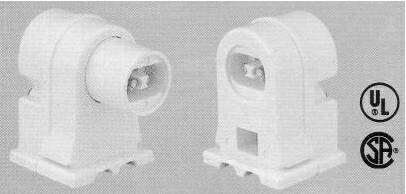

HIGH OUTPUT 800 MA
SLIDE-ON SHALLOW MOUNT
White Urea OuickWire Terminals
Multiple Terminal Design Will Allow Jumper
Leads On Stationary Ends Only
Can be used Outdoors if Properly Enclosed
Rated 660W-600V
D02-D3503 Plunger End
D02-D3504 Stationary End

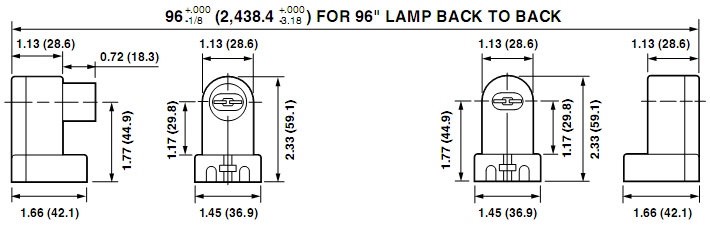

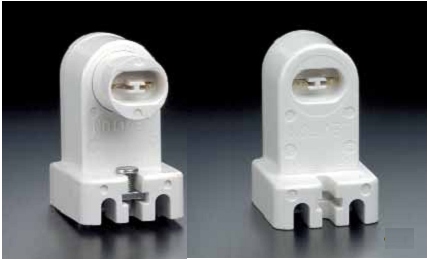

FLUORESCENT POWER GROOVE
1500 MA. VHO Recessed Double
Contact Pedestal Type Lamp Holders
For use with the Power Groove
PG-17 Double Contact Lamp
Rated 660W-600V
M02-L464 Plunger End
M02-L465 Stationary End

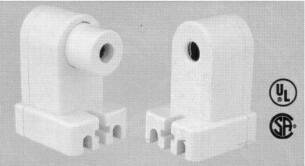

FLUORESCENT SUMLINE LAMP HOLDERS
Pedestal Type Single Pin
For Flush Or Surface Mount
Suitable for Outdoor Use When Properly Enclosed
Screw Terminals with #8-32 Screw And Nut
Stationary End Rated 660W-600V
Plunger End Rated 660W-1000V
D02-D2667 Plunger End
D02-D2765 Stationary End

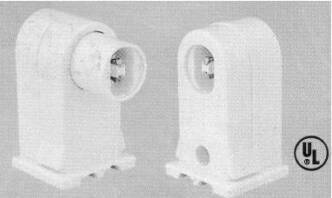

SLIDE-ON, SHALLOW BASE
For Power Groove And Jacketed Lamps
For 20 GA. Metal Fixtures
Quick Wire Terminals Accept
#18 AWG Twisted and Tinned Wires
Can Be Used Outdoors
If Properly Enclosed
Rated 660W-600V
D02-D3506 Plunger End
D02-D3507 Stationary End

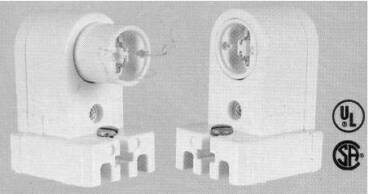

HIGH OUTPUT FLUORESCENT LAMP HOLDERS
HIGH OUTPUT LAMP HOLDER
Quick Wire Terminals
#6-32 Nut Inserted
Rated 660W-600V
D02-D3943 Plunger End
D02-D3944 Stationary End
