Halogen Lamp Holders
This page was last updated: June 14, 2010
HALOGEN G9 SOCKET
High Heat Plastic
Ceramic Front
Push-In Socket Base
Complete with Cap and Ring
1/8 IPS F Bushing
Rated 5A - 250V

D02-D2788
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
Best if viewed with 1024 resolution!!!!
Page
H038-1
HALOGEN G9 SOCKET
Porcelain with External Threads
Socket Base Ring 1/8 IPS Hickey
UL recognized

21" 250 C Degree Leads
G03-5041/9/21

72" 250 C Degree Leads
G03-5041/P/72
Build a Website in 30 minutes. Try Free, Click Here.
HALOGEN G9 SOCKET
Porcelain with External Threads
Socket Base With Quick Connect Terminals, Ring, 1/8 IPS Hickey
UL recognized

G03-5041/P/QC
Die Cast Ring For Use with G9
Porcelain with External Threads
Socket

G03-5041/RING
PORCELAIN
GU-10 SOCKET
1/8 IPS Hickey
Silicone/Fiberglass 200°C 18 AWG Rated 100W - 250V

12" Leads
D02-D2748

6" Leads
M02-GU10PH
PORCELAIN BI-PIN
GU-10 SOCKET
Silicone/Fiberglass 200°C
18 AWG Rated 100W - 250V

12" Leads
D02-D2738

6" Leads
M02-GU10P
HALOGEN G9 SOCKET
Ceramic
Rear Push-In Wire Contacts
Screw Down or Snap in Mount
(can be used with M02-LB258303)

M02-LB258301
HALOGEN G9 SOCKET
High Heat Plastic
Threaded Barrel
1/8 IPS F Bushing
(Use With M02-LB258301)

M02-LB258303

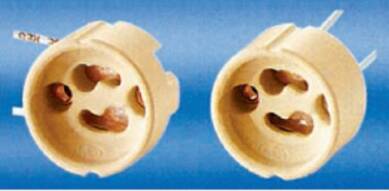

PORCELAIN BI-PIN
GU-10 SOCKET
5" Leads

Parrallel Side Leads
M02-LB2581968

Rear Leads
M02-LB2581969
Plastic
Snap on Mounting Cap
1/8IP

M02-LB25919301

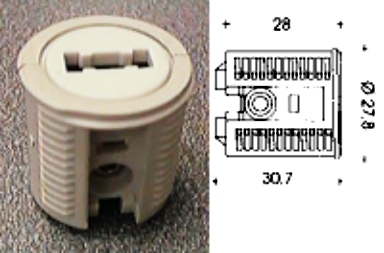

Halogen Socket G9 Base
Line Voltage Push in terminals  (Quick Connect)
0.5A, 250V,250ºC Color: White Use with Clip-in Cap 391/GVS/T/B

G03-5040/B
Clip-in Cap Plastic
1/8 IP Threaded plastic entry With locking screw
Color: White Use with 5040/B Socket

G03-391/GVS/T/B

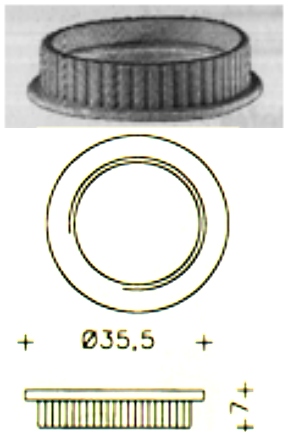

Shade Ring for Use with 5040/B Socket

G03-146/T/B
