Bayonet Base Sockets
This page was last updated: February 20, 2011
SINGLE CONTACT BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Single Contact Base
Flat Mounting Bracket
Mounting 1" C. to C.
Rated 75W-125V
D02-D2799 6" 105° Leads
SINGLE CONTACT BRASS BAYONET SOCKET
NICKEL PLATED
3/8" THREAD 1/8 IPS MALE
Rated 75W-125V
D02-D3751 60" 105° Leads

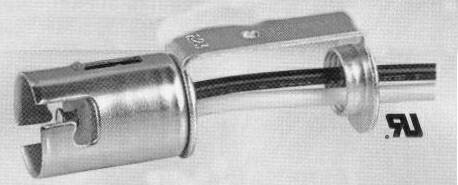

SINGLE CONTACT
BAYONET BASE SOCKET
For High Intensity And Other Low
Voltage Applications
Single Contact Base
6" 105° Leads through 1/8 IPS
Hickey
2-3/16" Overall
Rated 75W-125V
D02-D2795
DOUBLE CONTACT
BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Double Contact Base
Flat Mounting Bracket
Mounting 1" C. to C.
Rated 75W-125V
D02-D2796 6" 105° Leads
G03-L12 6" 200° Leads
DOUBLE CONTACT
BAYONET BASE SOCKET
For High Intensity And
Other Low Voltage Applications
Double Contact Base
6" 105° Leads through 1/8 IPS
Hickey
2-3/16" Overall
Rated 75W-125V
D02-D2794
DOUBLE CONTACT BAYONET SOCKET
3/8" THREAD 1/8 IPS MALE
Rated 150W-125V
D02-D3760 10" 250° TeflonLeads
Rated 75W-125V
G03-L11 6" 200° Leads
Page
H036
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
Best if viewed with 1024 resolution!!!!
DOUBLE CONTACT BAYONET SOCKET
Tapped 1/8 IPS Female
Rated 75W-125V
G03-L17 6" 200° Leads
SINGLE CONTACT BAYONET
BASE BRASS SOCKET
BA15AS STAINLESS STEEL SPRING
D02-D3762 50" 18/2 AWG 105°SPT-1 LEADS
D02-D3764 50" 200°C LEADS
All Item this page can be supplied with quick connect terminals up to the lenght specified if used for low voltage applications!
