Pulse Rated Medium Porcelain Sockets
This page was last updated: June 10, 2010
MEDIUM BASE LAMP HOLDER
4 KV PULSE RATED
GLAZED PORCELAIN
FOR USE WITH HIGH INTENSITY
DISCHARGE LAMPS
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
9" SF-2 Leads
Two #6-32 Captive Screws
27/32" Centers
Rated 660W - 600V

D02-D2609
D02-D7609    (Leviton Brand)
Page
H018
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
Best if viewed with 1024 resolution!!!!

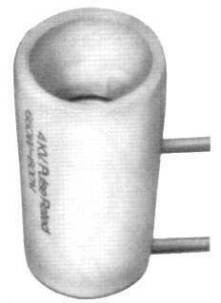

MEDIUM BASE EXTENDED BODY LAMP HOLDER
4 KV PULSE RATED
PORCELAIN
FOR USE WITH OPEN FIXTURE MEDIUM BASE LAMPS
9" SF-2 200 Degree Leads
Two #6-32 Captive Screws
Rated 660W - 600V

M02-L70051

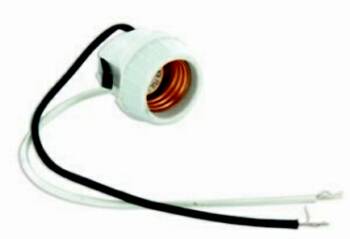

MEDIUM LAMP HOLDER
4 KV PULSE RATED
PORCELAIN SNAP-IN SOCKET
Rated 660W - 600V

Leviton 18876
B02-48107-4KV  9" 200 Degree Leads

S05-80-1674 9" 200 Degree Leads

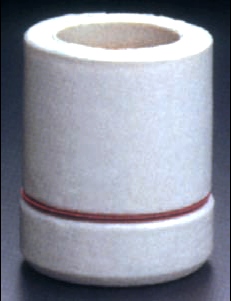

MEDIUM BASE LAMP HOLDER
4 KV PULSE RATED PORCELAIN
#18 AWGSF-2 200° leads
Rated 660W - 600V

9" Leads
M02-L70045           (2)  #6-32  Bushings Leviton
M02-L70045F        (2)  #6-32  Bushings  Import

36" Leads
M02-L70045-36F  (2)  #6-32  Bushings  Import
MEDIUM TO MEDIUM BASE EXTENTION
4 KV PULSE RATED
PORCELAIN Extents (1 1/8")

M02-L2005-4KV
Build a Website in 30 minutes. Try Free, Click Here.
Medium Base Socket
Heavy Duty glazed Porcelain
Copper-Alloy 4KV Pulse Rated
Rated 660 Watts - 600 Volts

S05-80-1870
