Medium and Mogal Base Porcelain sockets
This page was last updated: June 10, 2010

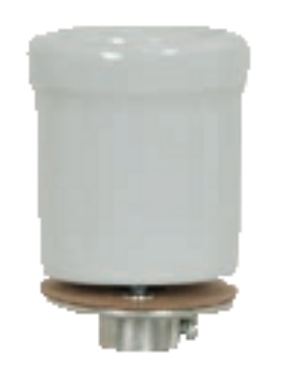

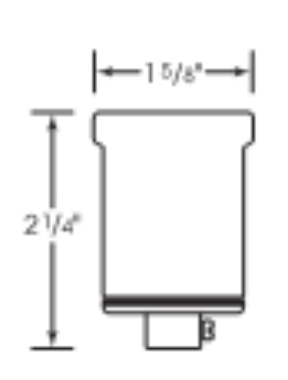

Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
1/8IP Light Duty Metal Cap
150 Degree Leads
Rated 660 Watts - 250 Volts

D02-D760                      9" Leads
M02-L10045-8L            9" leads Leviton
D02-D761                    18" Leads
M02-L10045-824FL   24" Leads

With Ground Lead
M02-L10088-8F-SP     9" leads
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
2 Screw Terminals
1/8IP Light Duty Metal Cap
Two Captive Screws #6-32
Rated 660 Watts - 250 Volts

D02-D73                Socket only
D02-D74               With heavy Duty
                              Metal Cap 1/8IP
D02-D76               With heavy Duty
                              Metal Cap 1/4IP
D02-D77               With heavy Duty
                              Metal Cap 1/2IP
D02-D73/D560    With heavy Duty
                              Metal Cap 3/8IP
D02-D7073          Socket only
                             (Leviton Brand)
D02-D7074         With heavy Duty
                             Metal Cap 1/8IP
                            (Leviton Brand)
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
Screw Terminals and Ground terminal
for 3 wire hook up
1/8IP Light Duty Metal Cap
Two Captive Screws #6-32
Rated 660 Watts - 250 Volts

D02-D116      Socket only
D02-D115      With heavy Duty
                      Metal Cap 1/8IP
D02-D7116   Socket only
                     (Leviton Brand)
D02-D7115   With heavy Duty
                      Metal Cap 1/8IP
                     (Leviton Brand)

200 Piece Pack Of DR-D115
D02-D5115    With heavy Duty
                      Metal Cap 1/8IP

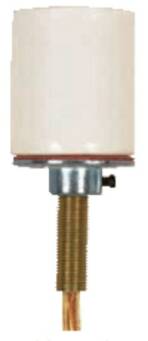

Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
105 Degree leads threw
a Removable Hickey
Rated 660 Watts - 250 Volts

D02-D78        9" leads
D02-D220     18" leads
D02-D229     29" leads
D02-D245     72" SPT-1
18/2 Gold and Ground Lead
D02-D246     36" SPT-1
18/2 Gold and Ground Lead
D02-D3997    72" SPT-2
18/2 Gold and Ground Lead
Medium Base Glazed Porcelain Socket
Copper-Alloy
Nickel Plated Screw Shell
Screw Terminals
and Removable Hickey
Rated 660 Watts - 250 Volts

D02-D80       1/8IPS Hickey
D02-D82       1/4IPS Hickey
D02-D7080   1/8IPS Hickey
(Leviton Brand)
Medium Base Glazed Porcelain Socket
Side Outlet
Copper-Alloy
Nickel Plated Screw Shell
Metal Cap Tapped 1/8IP
With set screw
Bushing Extends 7/32" Beyond
Socket edge and Centers
7/16" Below Cap Surface
Rated 660 Watts - 250 Volts

D02-D114     Screw Terminals
D02-D118      9" 150 Degree leads
Page
H015
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052
cs@hrelampparts.com
Best if viewed with 1024 resolution!!!!
Build a Website in 30 minutes. Try Free, Click Here.
3-WAY MOGUL BASE SOCKET
UNGLAZED PORCELAIN
REMOVABLE TURN-KNOB
EXTENDS TO CLEAR
DIAMETER 3" HUSK
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
MANDREL THREAD #8-32
Screw Terminals
Rated 750W - 250V

D02-D70  Socket Only
D02-D101Socket with D72 Hickey
KEYLESS MOGUL SOCKET
GLAZED PORCELAIN
COPPER-ALLOY,
NICKEL PLATED SCREW SHELL
SINGLE CIRCUIT WITH 1/4 IPS METAL CAP
Screw Terminals
Rated 1500W - 600V

D02-D102
MOGUL HICKEY ONLY
D02-D721/4 I PS
