Porcelain Threaded Sockets
This page was last updated: June 23, 2010
Porcelain
Medium Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell
Screw Terminals
2 Captive Screws #6-32,
With Metal Ring (Shade holder)
1/8IP Heavy Duty Metal Cap
Rated 660 Watts - 250 Volts
D02-D86 ADL
B02-48108 Leviton
D02-D5086 200 Piece ADL Pack
Porcelain
Medium Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell
Screw Terminals
2 Captive Screws #6-32,
Rated 660 Watts - 250 Volts
D02-D87
Porcelain
Candelabra Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell With Threaded ring (Shade holder) 1 3/16" Outer Diameter and 1/8IP Hickey 1 5/8" height 1" Diameter
Rated 75 Watts - 125 Volts
D02-D3890 12" Leads
K02-30790 6" Leads
White Die Cast Metal Ring
Deep Ring for Easy Reach
for Use with Medium Base
Porcelain threaded socket use with
D02-D86 and D02-D87
D02-D5902
Metal Ring
for Use with Medium Base Porcelain threaded socket use with
D02-D86 and D02-D87
D02-D548
Heavy Duty Die Cast Cap
For Porcelain Sockets
2 #6-32 Tapped Screw Holes
Insulator and Set Screw
D02-D541 1/8IP
D02-D542 1/4IP
D02-D544 3/8IP
D02-D560 1/2IP
Light Duty Die Cast Cap
For Porcelain Sockets
2 #6-32 Tapped Screw Holes
Insulator and Set Screw
D02-D540 1/8IP
Phenolic Cap
For Porcelain Sockets
Without Set Screw
D02-D546 1/8IP
Page
H014
Best if viewed with 1024 resolution!!!!
Phenolic Cap
For Porcelain Sockets
Without Set Screw
D02-D545 1/8IP
Rands Creative Creations
Harold Rand Enterprises
3729 Freeman Rd
Jacksonville FL 32207
904 398 7925
800 255 8052

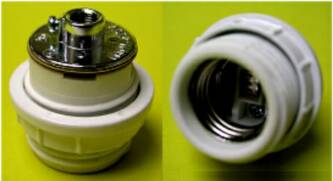

Porcelain
Medium Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell
Screw Terminals
2 Captive Screws #6-32,
With Metal Die Cast Ring (Shade holder)
1/8IP Heavy Duty Metal Cap
Rated 660 Watts - 250 Volts
G03-P-7084/03/DCR

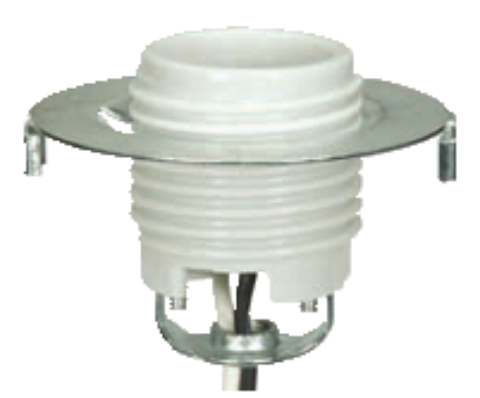

Porcelain
Medium Base Threaded Socket
Copper-Alloy Nickel Plated Screw Shell
With 26" 18#AWM 125 Degree with 1/8IP Hickey and Shade Metal Ring
1/8IP Heavy Duty Metal Cap
Rated 660 Watts - 250 Volts
S05-80/1768
