Metal Shell Medium Base 2-Circuit 3-Terminal Sockets
This page was last updated: March 19, 2019
Page
H001-2
Best if viewed with 1024 resolution!!!!
2-CIRCUIT 3-TERMINAL

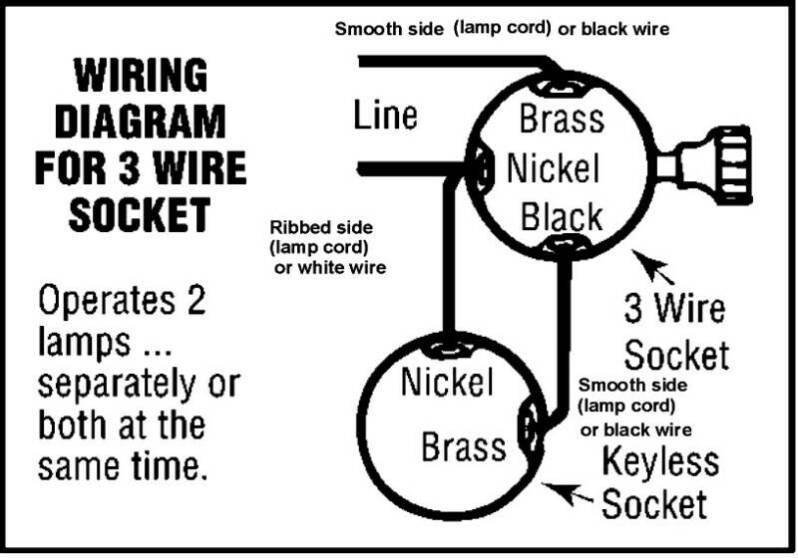

This socket is used to control a
separate keyless socket in the
following sequence:
1. 3 Terminal Socket - ON, Remote socket - OFF
2. Remote Socket - ON, 3 Terminal Socket - OFF
3. Both Sockets - ON,
4. Both Sockets- OFF
Rated 250W - 250V
WITH BUSHING TAPPED 1/8 IPS
WITH SET SCREW
Stamped Aluminum
K02-D0626 Brite Gilt
S05-8A1009-S Nickel
Stamped Brass
D02-4-4460 Polished and Lacquered
D02-4-4460P Polished No Lacquer
D02-4-4460A Antiqued No Lacquer
D02-4-4460AL Antiqued and Lacquer
D02-4-4460S Satin No Lacquer
D02-4-4460SL Satin and Lacquer
D02-4-7446 Polished (Leviton Brand)
D02-4-7446/4-7551 Polished UNO thread (Leviton Brand)
D02-4-4460/4-551 Polished Brass UNO thread
D02-4-4460/4-551P Polished No Lacquer UNO thread
D02-4-4460/4-551A Antiqued No Lacquer UNO thread
D02-4-4460/4-551AL Antiqued and Lacquer UNO thread
D02-4-4460/4-551S Satin No Lacquer UNO thread
D02-4-4460/4-551SL Satin and Lacquer UNO thread
C02-DA-3853-50/4-551 Black
C02-DA-3853-38/4-551 Bronze
WITH BUSHING TAPPED 1/8 IPS
WITHOUT SET SCREW
Stamped Aluminum
S05-8A1008 Brite Gilt
S05-8A1009 Nickel
WITH BUSHING TAPPED 1/4 IPS
WITH SET SCREW
Stamped Aluminum
S05-8A1501 Brite Gilt
ALL ABOVE AVAILABLE IN BULK PACK
200 - 500 Depending on Item number
Other finishes may be available
Antiqued can be light or dark also can be natural tarnished (dull brass)
e-mail us your requirements
